6 Inch 152mm Aluminum Mecanum Wheel Basic Left - 14165

6 Inch 152mm Aluminum Mecanum Wheel Basic Left – 14165

$32.70

The mecanum wheel uses a standard chassis shape and powers each wheel with a different motor. The motor can move in any direction, so there is no need to change the direction the wheels spin.


Ships From: China
Supplier: Nexus Robot SKU: 14165l Categories: , , Tags: , , , , , More From:

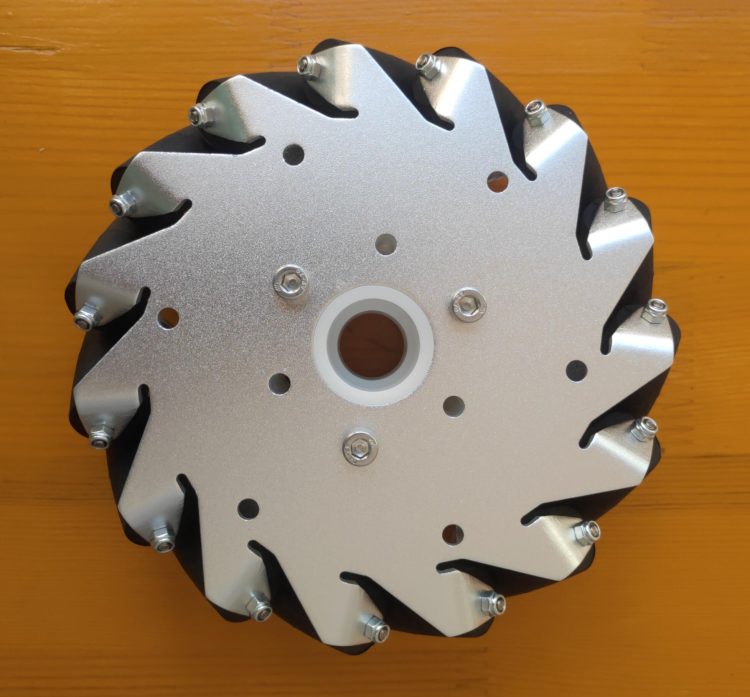

6-inch (152mm) Aluminum Mecanum Wheel Basic Left – 14165

The aluminum mecanum wheel includes a series of rollers attached to its circumference. These rollers have an axis of rotation at 45° to the plane parallel to the wheel’s axis. The mecanum wheel uses a standard chassis shape and powers each wheel with a different motor. The motor can move in any direction, with no need to change the directions the wheels spin. This design enables the wheel to propel your robot forward, backward, and sideways.

Specifications

  • Diameter: 152.4mm (6 inches)
  • Width: 55.52mm
  • Number of Rollers per wheel: 15
  • Number of Plates per wheel: 2
  • Body material: Aluminium alloy
  • Roller material: Nylon+TPR
  • Spacer material: Nylon
  • Length of roller: 38.1mm
  • Net weight per wheel: 600
  • Load capacity per wheel: 15Kg
